+994 515 287 203Drillman DE142 (Sandvik)
SANDVIK DE142 is a compact rig with the power to achieve high drilling torque. The design of the feeder does not have a chain, which increases the level of personnel safety.

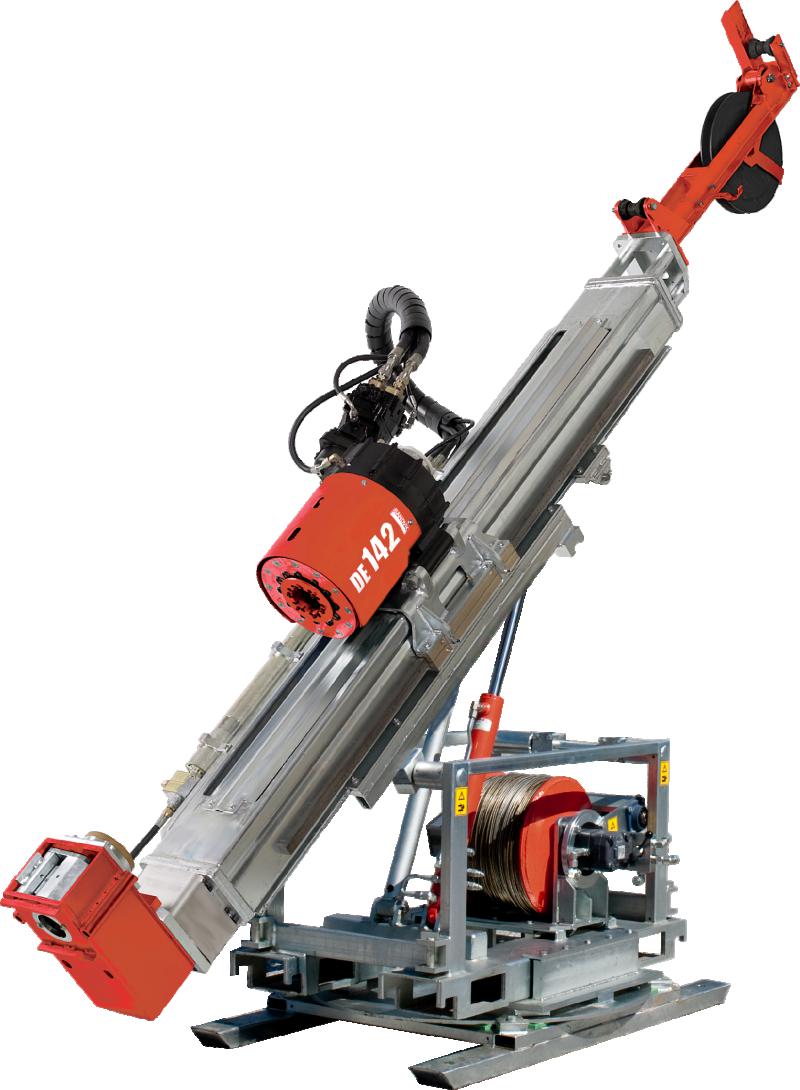

Drillman DE142 (Sandvik)
COMPACT CORE DRILL RIG
When you need to drill holes in larger diameters and deeper depths, the DE142 is here to help.
The DE142 is designed for customers who need high performance in underground core drilling with diamond tools or high torque for other applications.
HIGH PERFORMANCE
The feed system provides an optimal combination of torque and rotational speed, increasing the rate of penetration and extending the life of the drill bit. Like the other DE100 series drill rigs, the DE142 is equipped with a load sensing hydraulic system that provides direct proportional oil flow.
This rig is ideal for deep hole core drilling where space is limited.
POWER
This setup retained the key components of the DE140 while increasing power to 90kW. This extra power is transferred directly to the spinner using an oversized hydraulic motor, allowing the DE142 to deliver up to 1250 Nm of torque. The DE142 also uses a steel chainless feeder with a direct connection of the spinner to the hydraulic feed cylinder.
ROTATION WITHOUT FAILURE
Mounted on the DE142, the 'H' bore head provides up to 1250 Nm of torque.
The rotation speed is smoothly adjustable from zero to a maximum of 1100 rpm.
Characteristics
- Drilling depth* (N):
1220 m - Rotary head for driving diameter "H" (with a hole for the drive rod - ID diameter "H"):
103 mm - Maximum torque:
1250 Nm - Max. rotation speed:
1100 rpm - Feeder working stroke:
1700 mm - Pulling force:
9,4 t - Feed force:
9,4 t - Electric motor power:
90 kW - Diesel engine power:
147 kW - Weight ( (standard)):
3126 kg - Notes:
* Calculations are based on the lifting capacity of the unit,
which in some cases may exceed the nominal depth
drilling submersible technological tool.
Drillman does not guarantee reproducibility
results under any drilling conditions.
