SANDVIK DE130 is the most economical drill rig in its class. The experience of its operation by drilling contractors and mining enterprises has confirmed its unsurpassed profitability when drilling from the surface and underground mine workings.

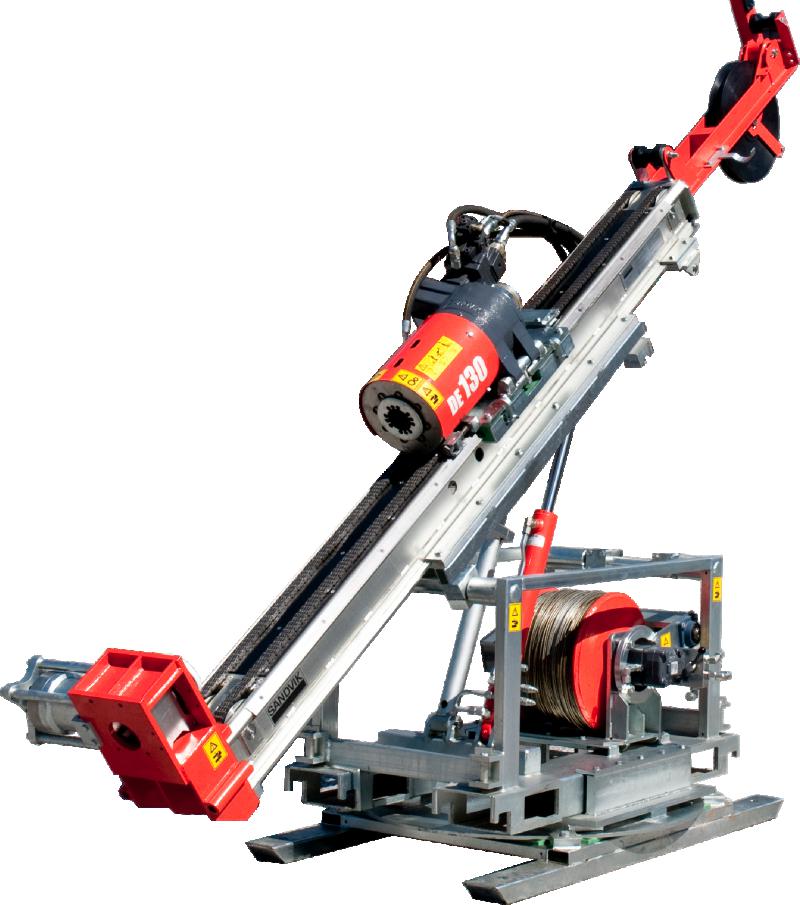

Drillman DE130 (Sandvik)
COMPACT CORE DRILL RIG
The DE130 is the most cost effective drill rig in its class for underground core drilling.
Based on the results of years of interaction with users, the company's engineers have made changes, adjustments and improvements to the design of the DE130 to achieve its modern-day operational flexibility.
VERSATILE AND RELIABLEЙ
The DE130 rigs have proven their high performance in a wide variety of applications, including diamond core drilling in underground workings, dam reinforcement, geotechnical drilling in tunneling and geotechnical surveys.
Drillman offers a wide range of accessories to meet the toughest challenges in your drilling program.
HIGH PERFORMANCE
The DE130 is powered by a hydraulic system. Its load-sensing hydraulic system delivers directly proportional oil flow, increasing efficiency.
The drilling rig is also equipped with a mechanical feeder, which makes it possible to extend the feeder until it touches the bottom of the mine.
HIGH POWER, SMALL SIZE
Despite its small size, the DE130 is powerful. Its feeder is made of extremely durable and torsion-resistant aluminum alloy.
If you need extra power, we can provide you with a high torque “N” heading rotator to help solve the challenges you face tasks for you.
Characteristics
- Drilling depth* (N):
815 m - Rotator for penetration diameter "N":
77 mm - Rotator for penetration diameter "H":
103 mm - Max. Torque (diameter “N”, high speed):
550 Nm - Max. Torque (diameter “N”, high torque):
800 Nm - Max. Torque (diameter “H”):
940 Nm - Max. rotation speed (diameter "N", high speed):
1600 rpm - Max. rotation speed (diameter "N", high torque):
1100 rpm - Max. rotation speed (diameter "H"):
1100 rpm - Feeder working stroke:
1700 mm - Pulling force:
6,3 t - Feed force:
4,7 t - Electric motor power:
55 kW - Diesel engine power:
92 kW - Weight ( (standard)):
2367 kg - Notes:
* Calculations are based on the lifting capacity of the unit,
which in some cases may exceed the nominal depth
drilling submersible technological tool.
Drillman does not guarantee reproducibility
results under any drilling conditions.
