The SANDVIK DE110 is the most compact rig in its class and is designed for drilling 'A' or 46mm exploratory wells, exploration and cementing wells.
Drillman DE110 (Sandvik)

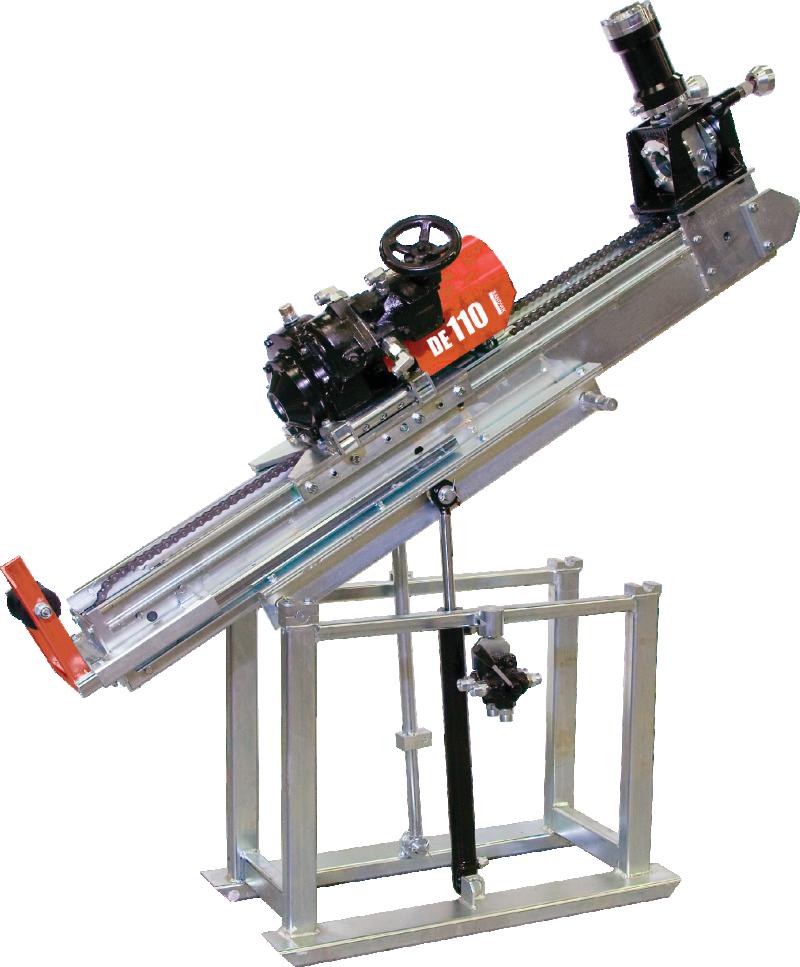

COMPACT CORE DRILL RIG
The DE110 is the most compact drilling rig in the DE100 Series.
It was designed as a portable drilling rig for drilling "A" or 46 mm diameter holes for exploration, grade control and drilling of cementing holes.
The DE110 is also excellent for sampling rock or concrete when drilling holes up to 116mm in diameter and up to 30m deep.
This drilling rig is equally successfully used both in open-pit mining and in underground mining.
HIGH MOBILITY AND PERFORMANCE
The DE110 is a truly lightweight drill rig weighing only 297 kg including feeder, rod holder, rotator and base frame.
The compact, easy-to-assemble modular design of the drilling rig makes it possible to transport it by helicopter.
SMALL OVERALL DIMENSIONS
The design of the DE110 makes it easy and quick to install on the job site.
The modular design of the drilling rig allows for maximum flexibility when working in confined spaces.
EFFICIENCY AND SERVICEABILITY
One of the main requirements when creating the DE110 was to ensure ease of maintenance.
This has been achieved by keeping the size of major components to a minimum and creating a simple and open design that allows easy access for maintenance.
All drilling operations can be controlled by one operator using the control panel. Torque and rotation speed adjusted according to the type of rock.
Characteristics
- Drilling depth* (A):
230 m - Rotator (with drive shaft hole - ID):
51 mm - Maximum torque:
170 Nm - Max. rotation speed:
1700 rpm - Feeder working stroke:
800 mm - Pulling force:
1,1 t - Feed force:
1,7 t - Electric motor power:
15 kW - Diesel engine power:
37 kW - Weight ( (standard)):
681 kg - Notes:
* Calculations are based on the lifting capacity of the unit,
which in some cases may exceed the nominal depth
drilling submersible technological tool.
Drillman does not guarantee reproducibility
results under any drilling conditions.
